Finishing of back parts

Men's jackets / Finishing pressing department

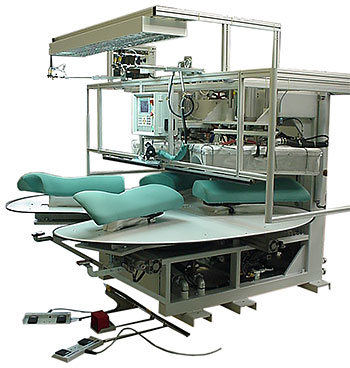

Pressing machine for off-pressing of back and sideparts right and left
HIGH-PERFORMANCE CAROUSEL-FRAME CONSTRUCTION - 180° rotation with 4 lower and 2 upper pressing shapes, mounted in V-form - because of this kind of mounting both shapes can be operated from the same position and the operator has to turn himself only
right and left side can be controlled individually



Standard equipment

• microprocessor control [ details ]
• vertical movement and exact positioning of the upper shape
• pressure regulation programmable steplessly (digital)
• positioning vacuum in the lower shape
• vacuum in the lower shape - programmable in steps
• exterior steam suction
• vacuum in the upper shape
• blowing in the lower shape by program and separate foot pedal
• steaming in the lower shape
• blowing in the upper shape
• steaming in the upper shape - programmable in steps
• proportional-technique for admixing compressed air in the upper shape
• blowing device in armhole area
• coverings of first class
• safety devices
• complete technical documentation



Additional equipment

• iron incl. safety placing area and accessories, completely pre-assembled
• kd-plate for upper shape [details]
• light point projectors (laser) for exact positioning of the part
• workplace illumination
• automatic removal device
• remote maintenance (modem)



Pressing shapes

• especially developed and designed for the respective pressing operation, for ergonomic and high-quality ironing
• custom-fit, digitized and milled
• steam-heated
• evenly vacuum and steam distribution
